Homeowners in damp Seattle neighborhoods often watch their cabinet doors warp and swell after only a few seasons. Selecting the proper core material is the most critical decision for any lasting home cabinetry project.
An mdf vs plywood cabinets durability compared review reveals that plywood excels in moisture-prone areas, while MDF provides a perfectly smooth substrate for painted cabinet doors. According to scientific data from the Oklahoma State University Extension, MDF is engineered with uniform strength that prevents cracking under daily household wear. This stable structure prevents the core from splitting, whereas traditional plywood alternating layers provide the rigidity needed for heavy shelving. Combining these engineered panels allows designers to match the unique mechanical strengths of each material to different parts of your home storage system.
MDF vs Plywood Cabinets Durability Compared: What Is MDF and How Is It Used in Cabinets?

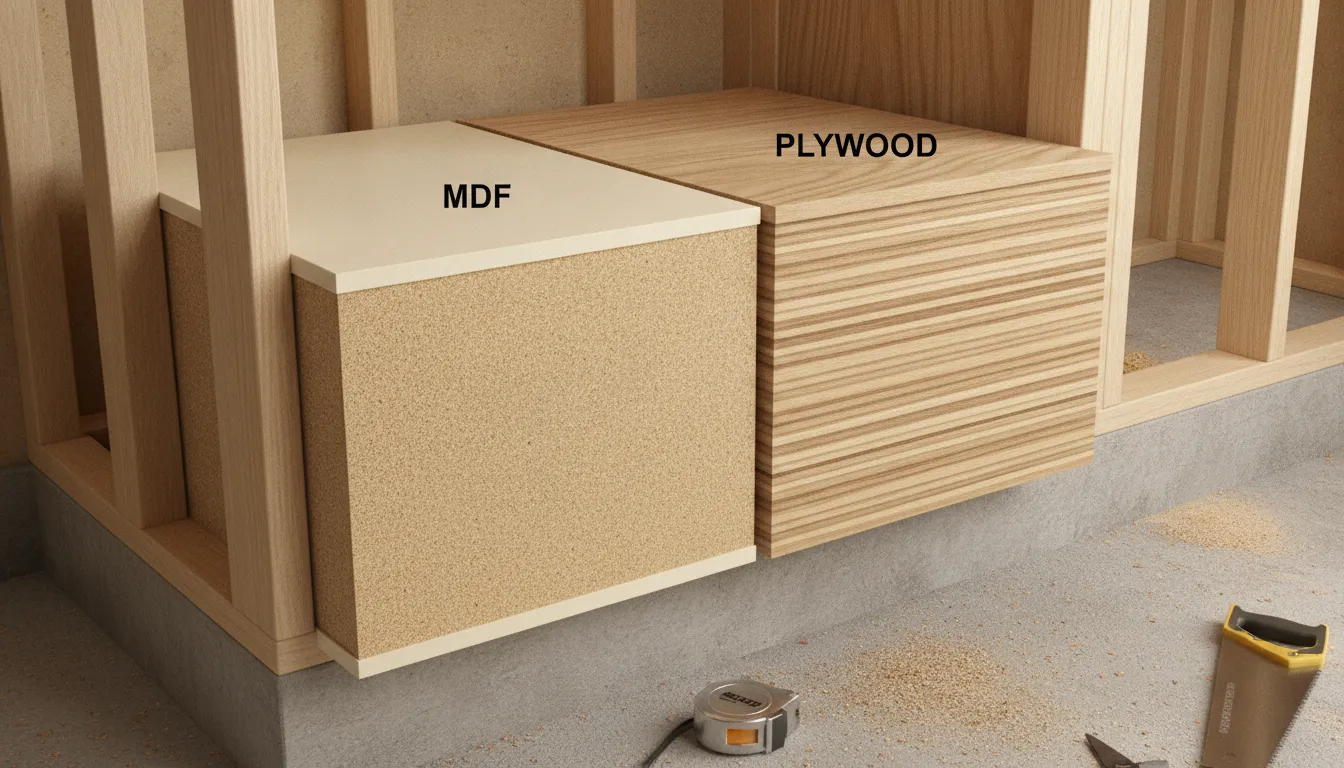

When comparing durability of mdf vs plywood, knowing how each panel is made is a good place to start. Medium-density fiberboard (MDF) is a common engineered wood panel. It is made by breaking down wood parts into fine fibers. These fibers are then mixed with binders under heat and pressure, as explained by experts at Oklahoma State University.
When you look at mdf vs plywood cabinets durability compared, MDF has clear benefits for certain parts of your home. It provides a dense, flat, and highly stable core. This makes it a great choice for painted finishes and detailed trim work.
How MDF Is Made
MDF is made from small wood fibers rather than thin sheets of wood veneer. High-grade panels used in cabinet making are heavy and strong. Academic studies in BioResources show that MDF density mostly ranges from 790 to 850 kg/m³.
Standard MDF is prone to swelling when it gets wet. To stop this moisture damage, makers can mix special resin binders into the wood during production. Adding melamine-urea-formaldehyde (MUF) resin with 30% melamine improves water resistance. This treatment reduces swelling and protects the core.
The Uniform Structure of MDF
Unlike plywood, which has wood grain running in different directions, MDF has a random fiber structure. Because of this even pattern, the board has uniform strength across its whole surface. There are no natural knots or grain lines that could cause the panel to warp over time.
Because the fibers are so fine, the edges of MDF are solid and tight. This lets builders cut and shape the edges with clean results. There are no gaps or voids inside the board, which is a common issue with multi-layer panels.
MDF in Cabinet Construction
In custom cabinets, MDF is the best choice for cabinet doors, drawer fronts, and closet shelving. Its smooth surface makes the perfect face for high-end paint finishes. Unlike plywood or solid wood, there is no grain to show through the finished layers. This ensures a smooth look.
MDF is also highly stable, meaning it does not shrink or grow with changes in air moisture. This shape-holding power is vital for cabinet doors, where even small shifts can cause doors to sag or rub against the frame.
Disadvantages of MDF
- MDF swells when it absorbs water, which can ruin the panel finish.
- MDF is heavier than plywood, making large wall-mounted systems harder to install.
- MDF has lower screw-holding strength, requiring proper joinery and pilot holes.
What Is Plywood and How Is It Used in Cabinets?
Plywood is a strong wood panel used in custom cabinets. To make it, makers bond thin wood plies together. They rotate the grain of each layer. This cross-grain layout gives the wood its name and high strength. According to academic research on poplar veneer, this pattern gives the wood superior stability. The veneers come from real logs sliced into thin sheets. Because the grains run crosswise, the panel has equal strength in both directions.
Superior Strength and Dimensional Stability
This unique structure makes the wood resist warping and splitting. While solid wood moves and cracks when wet, plywood stays flat. This makes it highly stable. To hold these layers tight, makers use structural-grade glues. These strong glues bond the wood plies so they will not pull apart. This means the boards can handle wet air without losing their shape. When comparing mdf vs plywood cabinets for durability, plywood stands out for its structural build. The bonded plies also resist dents and direct impacts during daily use.
High Strength-to-Weight Ratio
Another key plus of plywood is its light weight. It has a high strength-to-weight ratio. This means the wood is light but strong. Because it weighs less than other wood panels, it is easy to hang. The light weight also puts less strain on wall studs. This makes plywood the best choice for tall storage systems and wall-mounted boxes. You can store heavy items without fear of sagging shelves.
Advantages of Plywood for Cabinets
- Excellent moisture resistance compared to MDF in damp environments.
- High screw-holding strength for secure shelving and cabinet joints.
- Lightweight panels that reduce strain on wall studs during installation.
MDF vs Plywood: Moisture and Humidity Resistance Compared
Damp air can damage custom cabinets. Homeowners often look at how different materials hold up in moist areas. In a test of mdf vs plywood cabinets for durability, wet spaces present unique challenges. Plywood and medium density fiberboard react very differently when they get wet.
How Humidity Impacts MDF
Medium density fiberboard is wood fibers glued tight. This tight pack means it lacks grain lines to guide water away. Dampness makes the fibers swell. This swelling can ruin the shape of a closet door or cabinet panel.
Wet air shifts also weaken the board’s internal bond. A study on wet air cycles shows how repeated shifts hurt wood panels. These wet shifts cut the internal bond strength of MDF by 22 to 23 percent. Over time, this loss of strength can cause shelves to sag or warp.
Plywood Stability in Damp Spaces
Plywood holds up better when exposed to wetness because it is made of thin wood sheets glued in alternating directions. This cross-grain build gives the wood better dimensional stability. It stops the layers from swelling or shrinking too much when the air is damp. As a result, plywood has great stability and resists warping in damp conditions.
Plywood handles moisture well. High-moisture areas like basements and laundry rooms need materials that do not swell easily. When we look at how mdf vs plywood cabinets durability compared in wet environments, plywood has a clear edge.
MDF vs Plywood: Structural Strength and Load-Bearing Capacity
To build strong storage, you must look at how these panels hold up. We have cabinet durability compared to show which works best for heavy items. Both boards have clear limits when we measure strength, weight, and joint grip.
Load Limits and the Strengths of Plywood
Plywood has a major edge when it comes to holding up heavy items. It offers a high strength-to-weight ratio that makes it best for large wall-mounted shelves. Since its wood sheets have crossed grain paths, it resists warping. This layout keeps the wood stable across wide spans. You can load heavy kitchen appliances or large pantry jars on these shelves without fear of sagging.
Screw Grip and Joint Strength
How well screws hold in a panel is a key part of cabinet life. Plywood has a tight grain that grips screws with great force. Plain MDF has wood fibers that split if you do not drill pilot holes first. However, dense MDF with MUF resin that has 30% melamine offers a much stronger bond.
This dense blend resists breaking and swelling. Apart from the base board, the way joints are made is what gives a cabinet stiffness. Tests show that joint moment resistance depends on the panel and the joinery methods. Choosing the right joints can make up for some of the weak spots in composite wood panels.
| Property | Plywood | MDF |
|---|---|---|
| Strength-to-Weight | High; light but holds heavy loads well. | Lower; heavy panel but has stable strength. |
| Screw-Holding Power | Excellent; grain fibers grip threads tightly. | Moderate; prone to splitting without pilot holes. |
| Joint Resistance | High; wood layers resist bending at corner joints. | Competitive when made of high-density MUF resin. |
| Framing Options | Often used for frameless boxes or standard frames. | Works best when paired with solid hardwood frames. |
Surface Finish, Machining, and Aesthetic Considerations
When you choose custom storage, the look of the wood is key. How a board is made affects how smooth the paint looks. If you look at mdf vs plywood cabinets for durability, their outer surfaces show clear traits. MDF offers a flat, clean face with no grain, while plywood uses real wood layers.
Smooth Surfaces for High-End Paint
Research on cabinet panel products from Oklahoma State University shows that MDF provides a flat, even base with no wood grain. This smooth face is ideal for paint. In contrast, plywood uses real wood layers.
Because of this, plywood often has small knots, rough spots, or open grain. These natural marks can show through a paint coat. If you want a sleek, clean look, MDF is the best choice. You will not see wood lines break the paint over time.
Clean Machining for Custom Profiles
The way a board cuts also steers your design. MDF has a tight, even core of tiny wood fibers. When a sharp tool cuts into it, the board shapes cleanly without chipping. This makes MDF the top choice for detailed doors, trim, and panels.
Plywood is made of thin, cross-grain sheets. During fast cuts, those wood layers can chip or tear. If you want detailed door profiles, MDF will hold those fine shapes with crisp edges.
How Professional Installation Affects Long-Term Cabinet Durability
Board choice is only one part of cabinet life. To get the best results, you must look at how the system is set up. Proper setup helps a lot in how long your shelves last. When planning custom walk-in closets, the quality of the work is what keeps the parts stable over time. This is why mdf vs plywood cabinets durability compared depends so much on the installer.
Proper Joinery and Structural Support
A cabinet is only as strong as its joints. Research shows that joint type has a major impact on how stiff and rigid a cabinet remains over time. In fact, screw-jointed corner joints help keep the frames from sagging or shifting. This rule applies whether you use mdf or plywood for the boxes. Skilled builders use precise methods to join panels so they can bear weight without failing.
Matching Materials to Home Applications
A good system starts with smart design. Each area of your home has different levels of heat and moisture. A designer knows where to use each type of board to prevent swelling or warping. For example, some rooms need more moisture resistance while others need more strength. In high-use areas like laundry rooms, matching each board to the space is key.
The Value of a Lifetime Warranty
When an expert does the work, they stand behind it. Creative Closets offers a lifetime warranty on all parts and labor. You can pass this warranty to the next homeowner. It shows real trust in both the wood and the setup. You do not have to worry about loose screws or sagging shelves.
Quick Reference: MDF vs Plywood – Which Should You Choose?
Picking the best wood for your custom shelves can feel hard. When you look at mdf vs plywood cabinets durability compared, you will see that each option has clear strengths. Your choice will depend on where you put the cabinets, what you store, and the finish you want.
Moisture and Strength Criteria
High-moisture spaces like laundry rooms need stable wood to prevent swelling. Research from an academic study shows that high humidity can lower the bond strength of MDF by 23 percent. For wet spots, plywood is often the better pick because it resists water. Its cross-grained layers keep the wood flat when wet.
For heavy loads, plywood has a high strength-to-weight ratio that works well for wide shelves. It resists bending under heavy weight over time. But high-density MDF is also very strong and works well for bedroom closets with proper support. Professional design makes sure each shelf has the right thickness for the load.
Finish and Design Needs
MDF offers a very smooth surface that is best for a clean paint finish. This wood cuts cleanly with no chips. It is great for shaped cabinet door panels. On the other hand, plywood has a real wood grain that looks nice with a stain finish. Wood veneers can showcase oak, maple, or other premium species.
| Consideration | Choose Plywood When | Choose MDF When |
|---|---|---|
| Moisture exposure | High moisture or wet areas | Dry areas with stable humidity |
| Load requirements | Heavy items on wide spans | Normal loads with standard support |
| Desired finish (paint vs stain) | Natural wood grain or stain | Smooth painted or laminated surface |
| Budget | Stain-grade luxury projects | Cost-effective painted finishes |
Frequently Asked Questions
Which is more durable, MDF or plywood?
Plywood is generally more durable than MDF in terms of moisture resistance and structural strength. Its cross-grained layers resist warping and hold screws better. However, MDF offers superior dimensional stability and does not expand or contract with humidity changes. For the best results, professional custom closet designers use both materials where each performs best.
Is MDF or plywood better for closet shelving?
Plywood is better for closet shelving that carries heavy loads such as stacked sweaters or bins. Its strength-to-weight ratio keeps shelves from sagging over wide spans. MDF works well for closet shelving that holds lighter items and benefits from a smooth painted finish. Many custom closet systems combine both materials for optimal performance.
Can MDF be used in humid environments like basements?
Standard MDF is not recommended for humid environments because it can swell when exposed to moisture. However, moisture-resistant MDF with melamine-urea-formaldehyde (MUF) resin offers improved performance. Even with this treatment, plywood remains the better choice for basements, laundry rooms, and other potentially damp areas in Pacific Northwest homes.
What are the main disadvantages of MDF for cabinets?
- MDF swells significantly when it absorbs water, which can damage the finish and require replacement.
- MDF is heavier than plywood, making large wall-mounted cabinets harder to install.
- MDF has lower screw-holding strength, requiring pilot holes and proper joinery.
